A TINY WORK OF ART. Guest Post by Peter Spode.

I doubt if much attention is ever given to the small gold inlaid word SAFE positioned at the front of the safety catch.This sequence shows how this can be achieved on a Westley Richards gun.

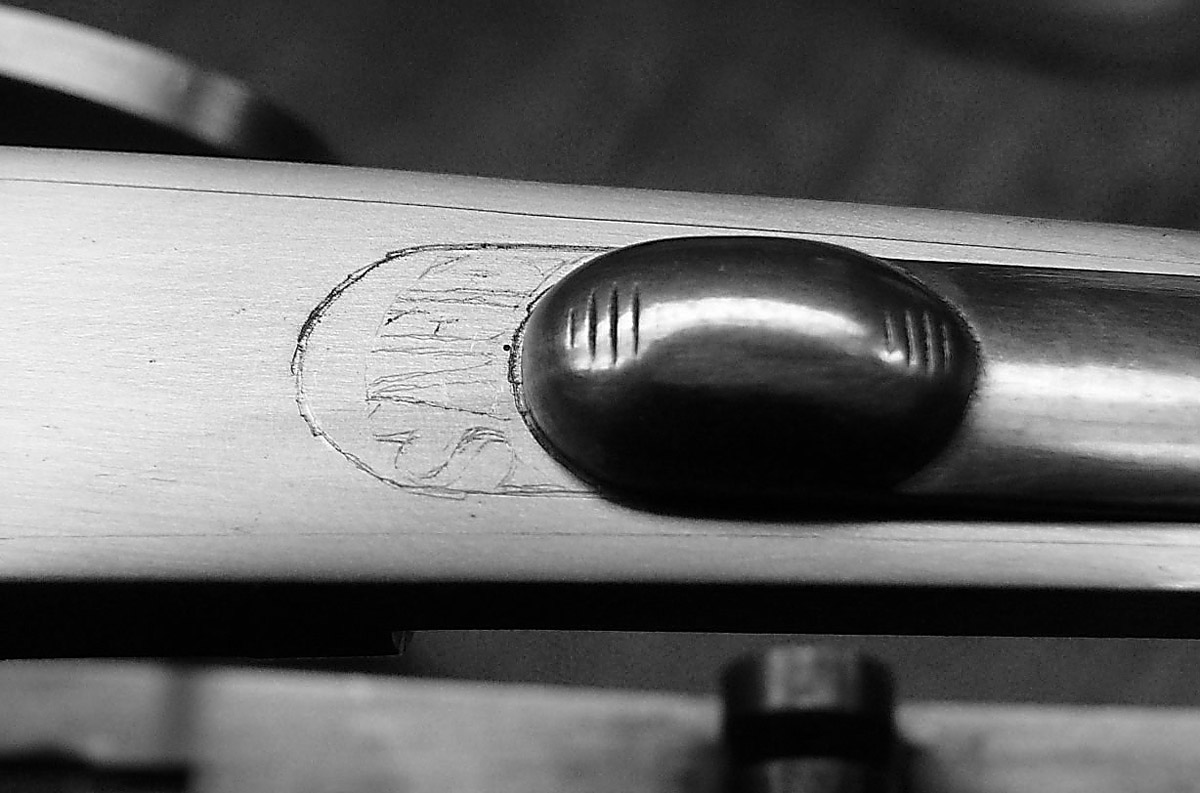

blog11.The letters are marked out lightly in the correct position on the top tang, making sure that the safety catch covers it completely when pushed forwards.

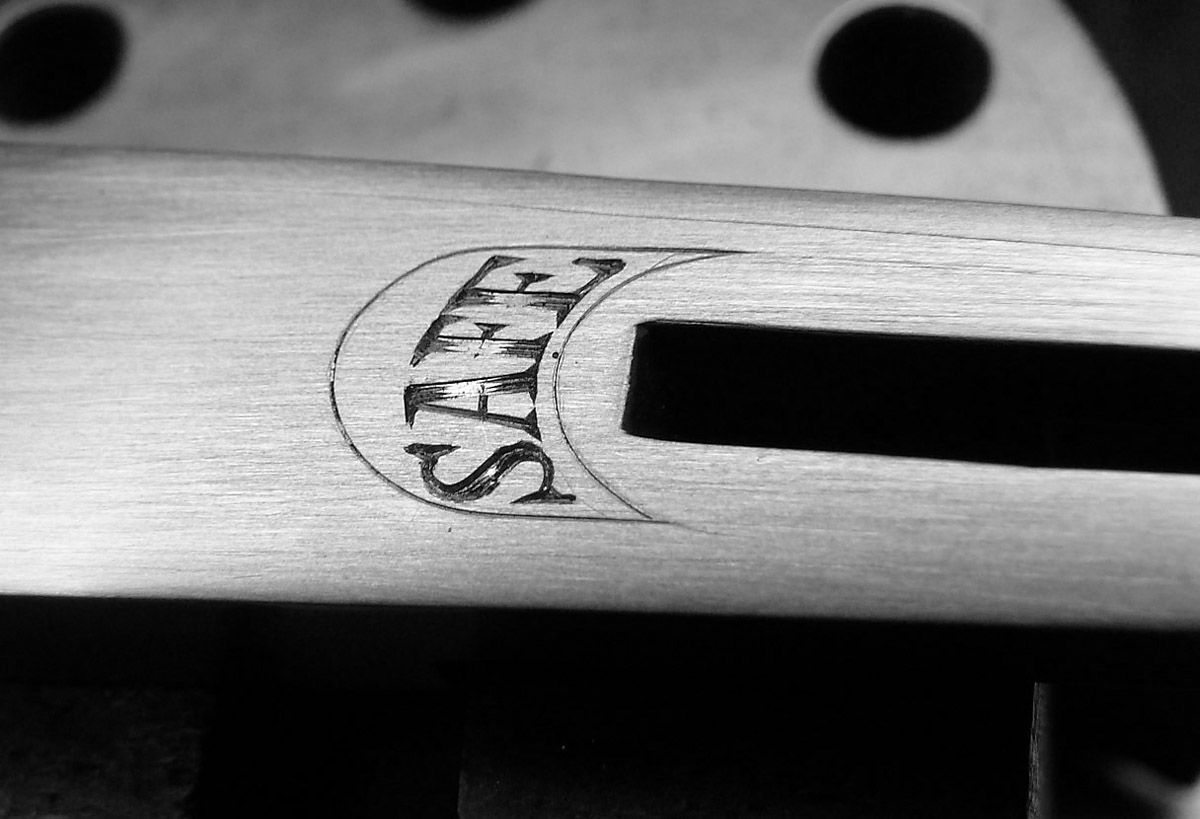

blog2 2.The letters are first engraved and then deepened further so there is plenty of depth for the gold.

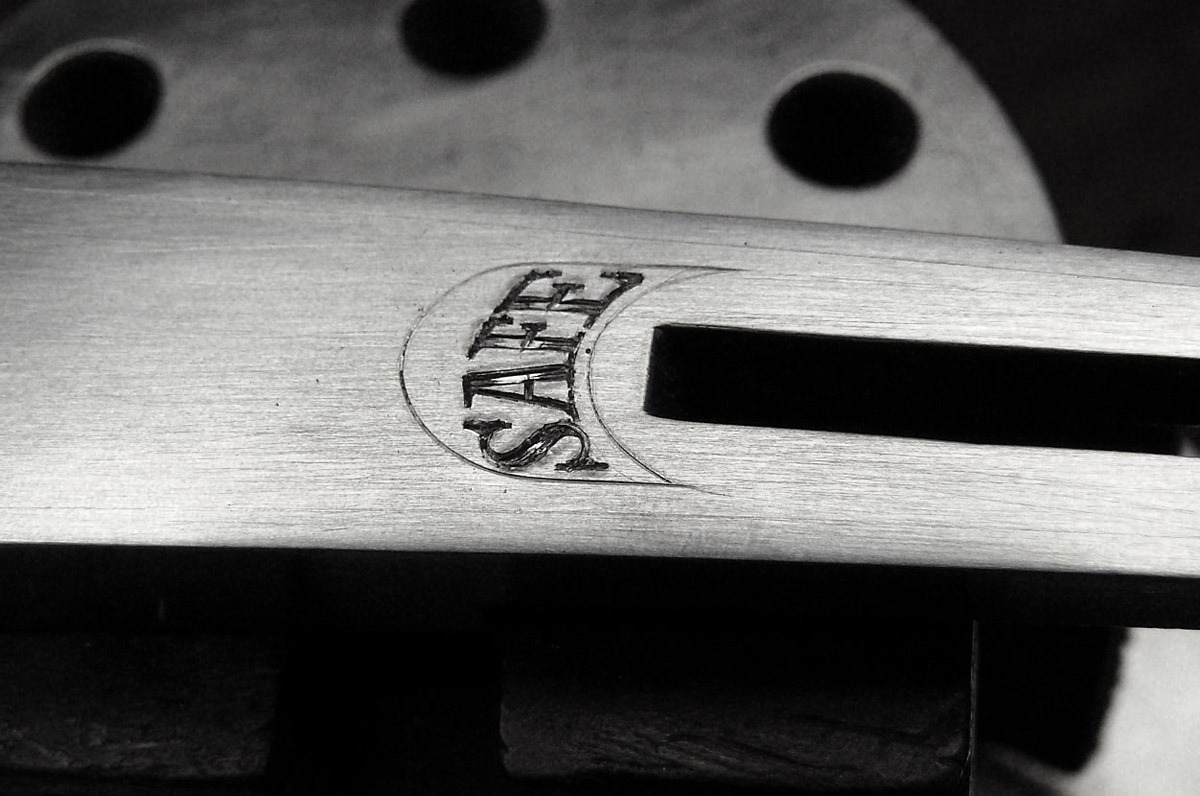

blog3 3. Next, each letter is undercut so that the bottom of the cut is wider than the top.This is necessary so that the gold will 'key' into the cuts and be held firm.Without this step, the gold would not be secure and may well fall out at a later date.Good deep undercuts are absolutely essential.

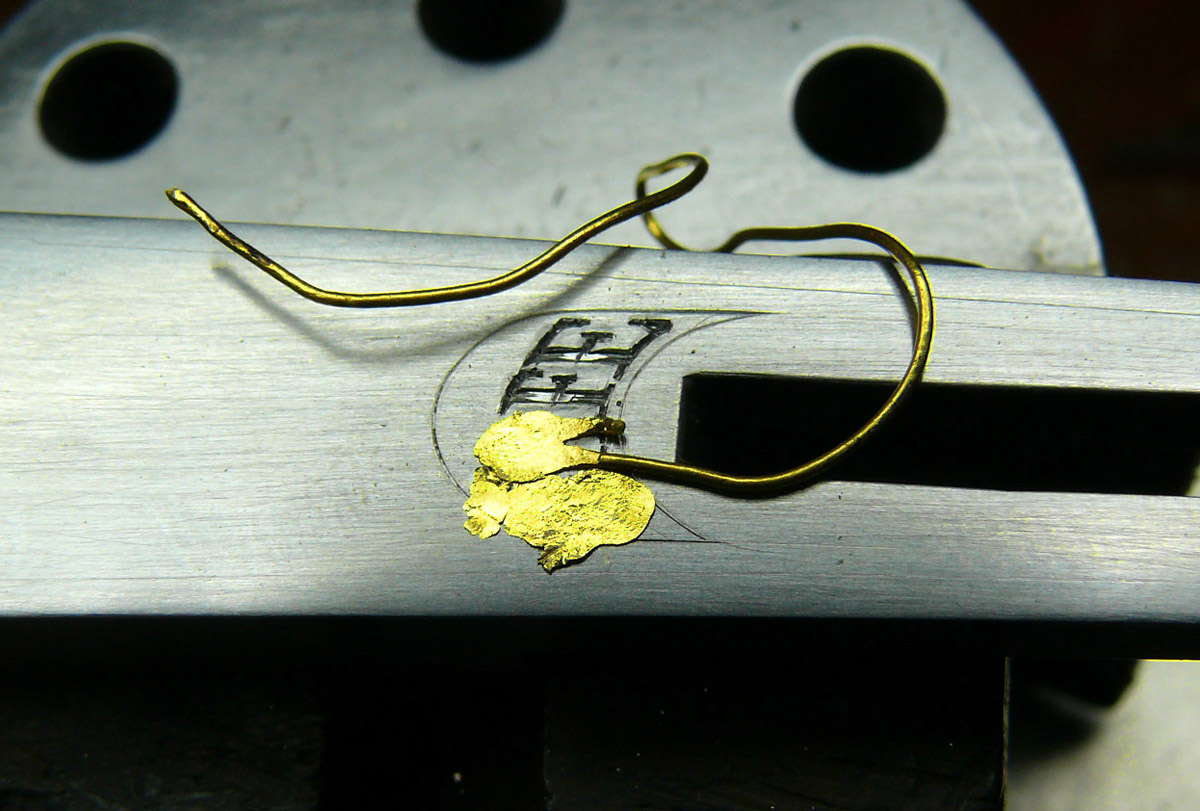

blog4 4. The gold is then hammered in with a punch. Often various diameters of 24 carat gold wire is used. The punches can be brass or nickel silver, which being softer than steel will not mark the steel surrounding the inlay.

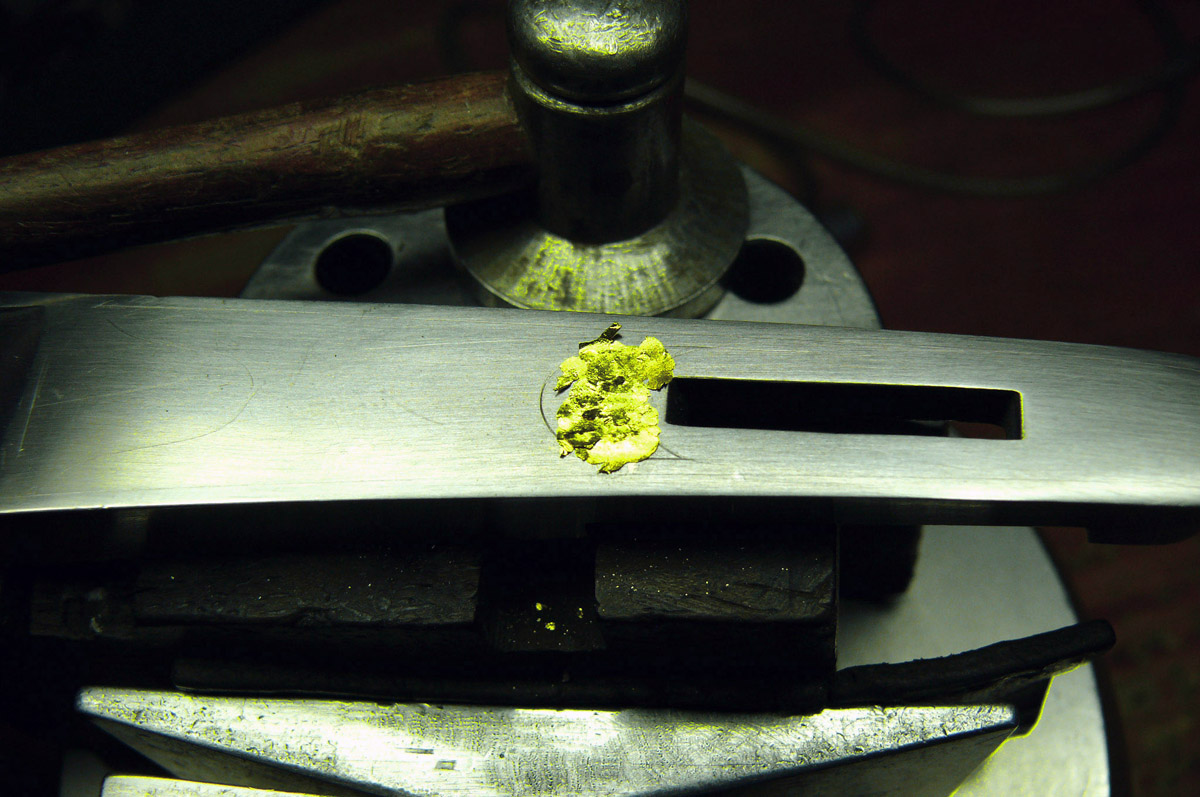

blog55. When complete, the whole area is hammered well to ensure that the gold has spread into the farthest corners of each letter.

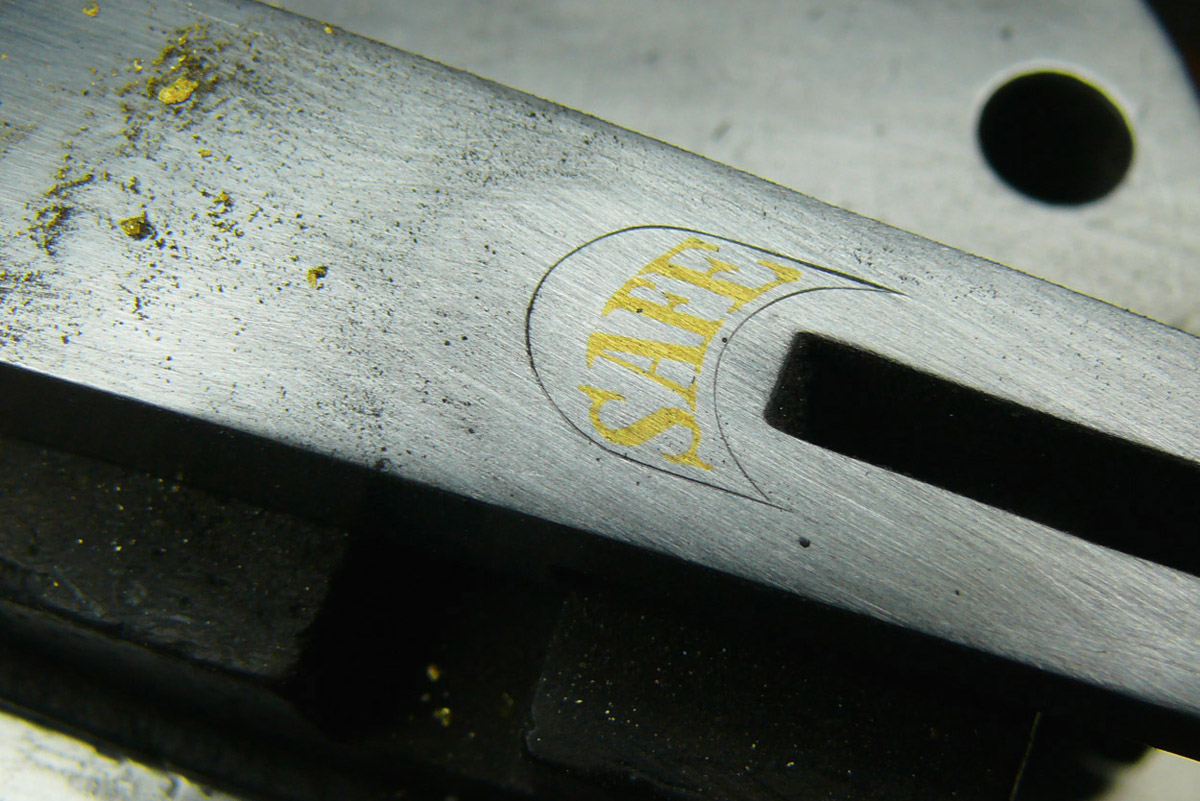

blog66.Using progressively finer grades of abrasive paper, the excess gold is removed and the whole area smoothed until free of any blemishes. This is the point that the engraver holds his or her breath as it is only now that the quality of the job can be assessed.

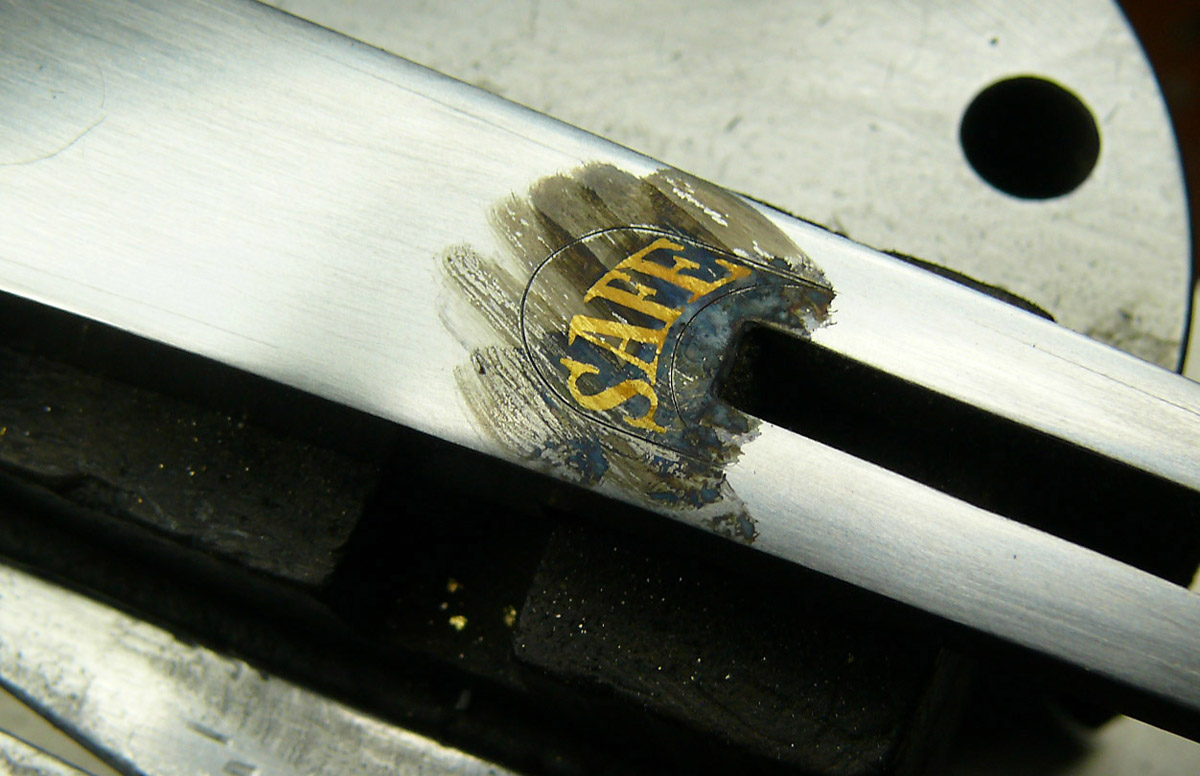

blog7 7. A quick application of gun blue reveals any faults in the lettering, and highlights where any modifications/corrections need to be made.

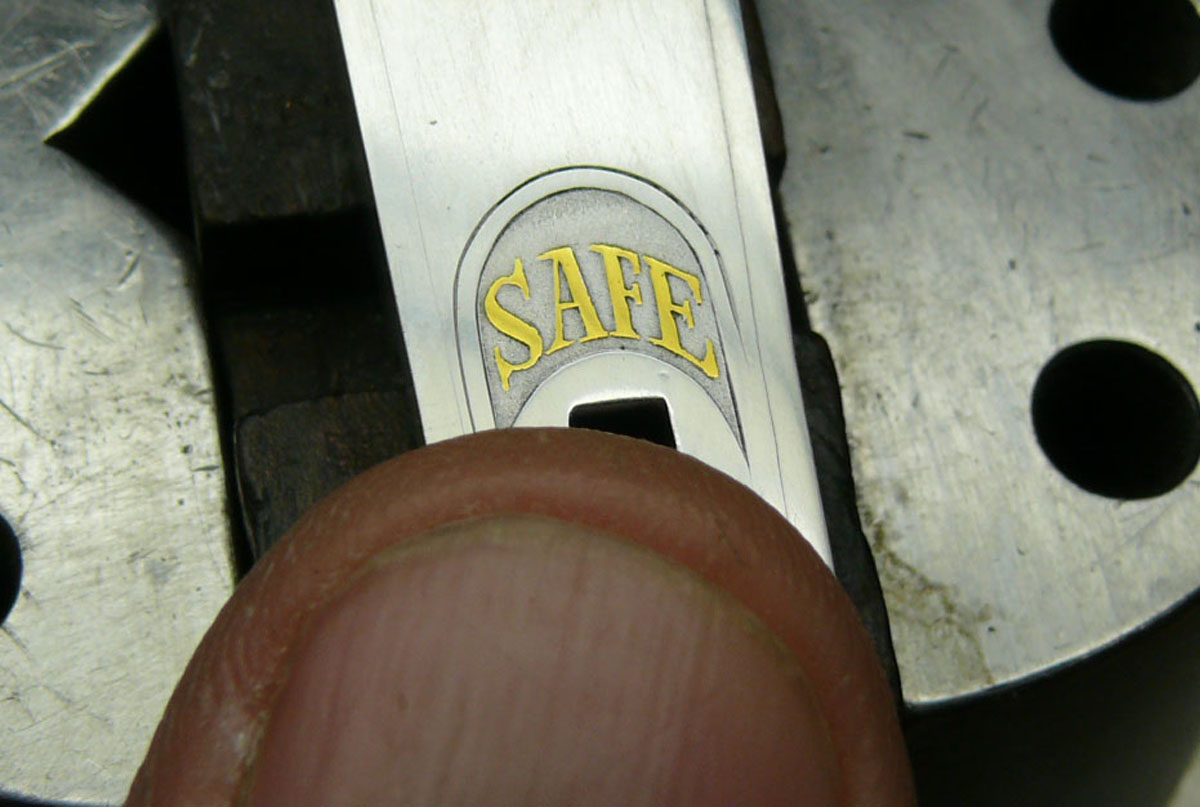

8.The steel around the area of the inlay is gently relieved to improve contrast and also to remove the possibility of unsightly wear underneath the safety catch when in use.After a little final fettling and polishing, the job is done !

Next time you handle a gun , why not pause for a moment to consider the work involved in this this tiny work of art under your thumb.

A Guest Post by Peter Spode. Peter has been engraving Westley Richards for 27 years. Please vote for Peter to win the deluxe book by posting a comment below!
