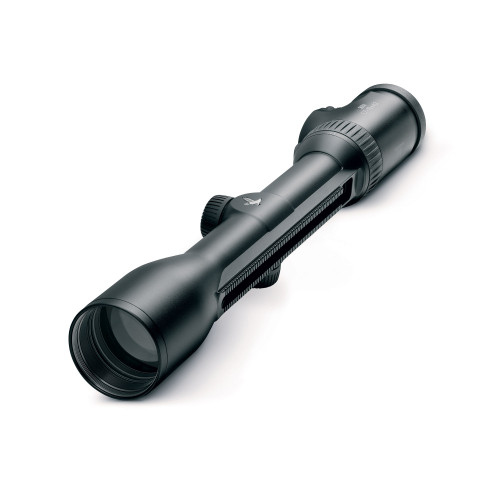

Z6I 1.7-10x42

• Magnification - 1.7-10x
• Effective objective lens diameter (mm) - 16.0-42
• Exit pupil diameter (mm) 9.6-4.2
• Exit pupil distance (mm) (Eye relief) - 95
• Field of view (ft/100 yds / m/100 m) - 75.6-12.6 / 25.5-4.2
• Field of view (degrees) - 14.3-2.4
• Field of view, apparent (degrees) - 23.7
• Dioptric compensation (dpt) - -3 to +2
• Light transmission (%) - 90
• Twilight factor acc. to DIN ISO 14490-1 4.7-20.5
• Impact point corr. per click (in/100 yds / mm/100 m) - 0.36 / 10
• Max. elevation / windage adjustment range (in/100 yds / m/100 m) - 54 / 1.5
• Objective filter thread - M 44x0.75
• Length (in / mm) - 12.63 / 321
• Weight (oz / g) 16.6 / 470
• Central tube diameter (in / mm) - 1.18 / 30
• Functional temperature - -4 °F to +131 °F (-20 °C / +55 °C)
• Storage temperature - -22 °F to +158 °F (-30 °C / +70 °C)
• Submersion tightness - 13 ft / 4 m water depth (filled with nitrogen)
